Splunk

Git Pipeline Setup

  1. 1.
    Create a "index" and "HEC-Token" in Splunk.
  2. 2.

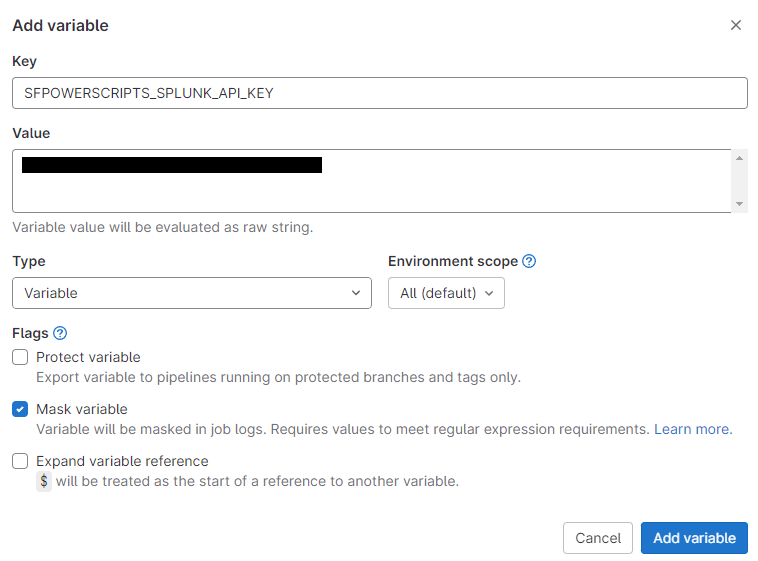

    Copy the HEC-Token and create a variable in your pipeline labeled "SFPOWERSCRIPTS_SPLUNK_API_KEY" and assign the value of the key. Ensure to mask this value.\
    Sample GitLab Variable for Splunk API Key
  3. 3.

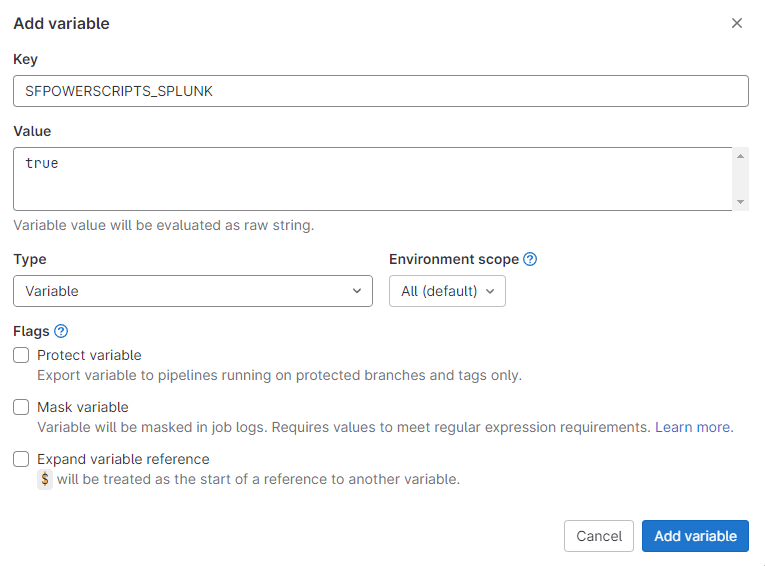

    Add another additional variable named "SFPOWERSCRIPTS_SPLUNK" and set the value to "true".\
    SFPOWERSCRIPTS_SPLUNK Variable
  4. 4.

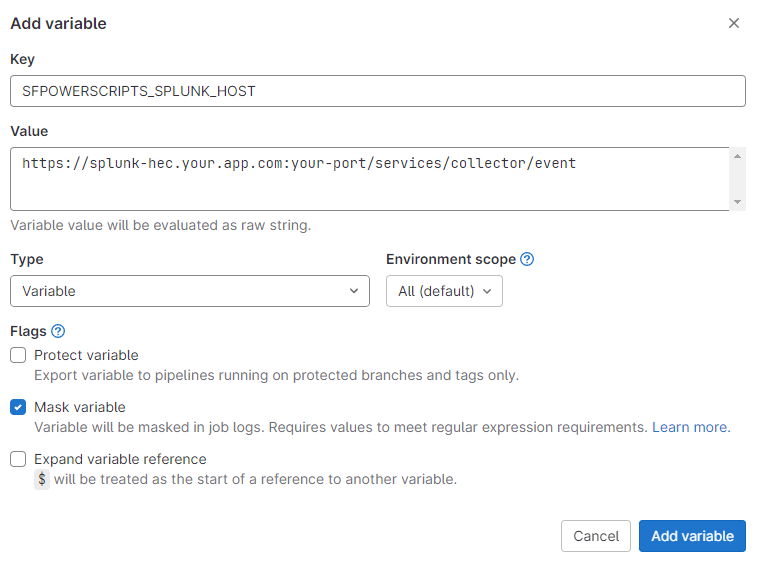

    Copy the full Splunk Event Collector Url and create a variable in your pipeline labeled "SFPOWERSCRIPTS_SPLUNK_HOST" and assign the value of the url. "Splunk Url". Ensure to mask this value.\
    SFPOWERSCRIPTS_SPLUNK_HOST Variable

Dashboard View

  1. 1.
    Navigate in Splunk to Dashboards and click Create New Dashboards.
  2. 2.

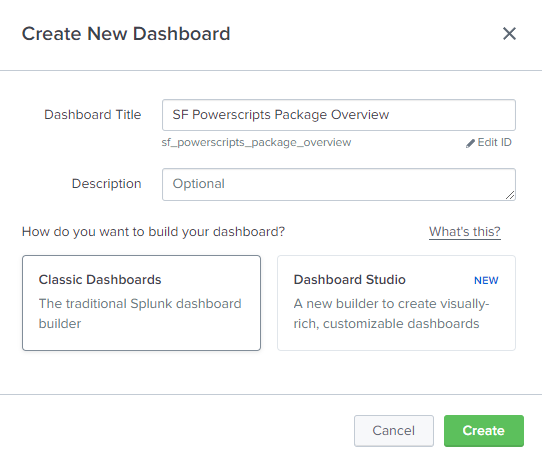

    Create a title and select Classic Dashboards.\
Splunk Dashboard Title
  1. 3.

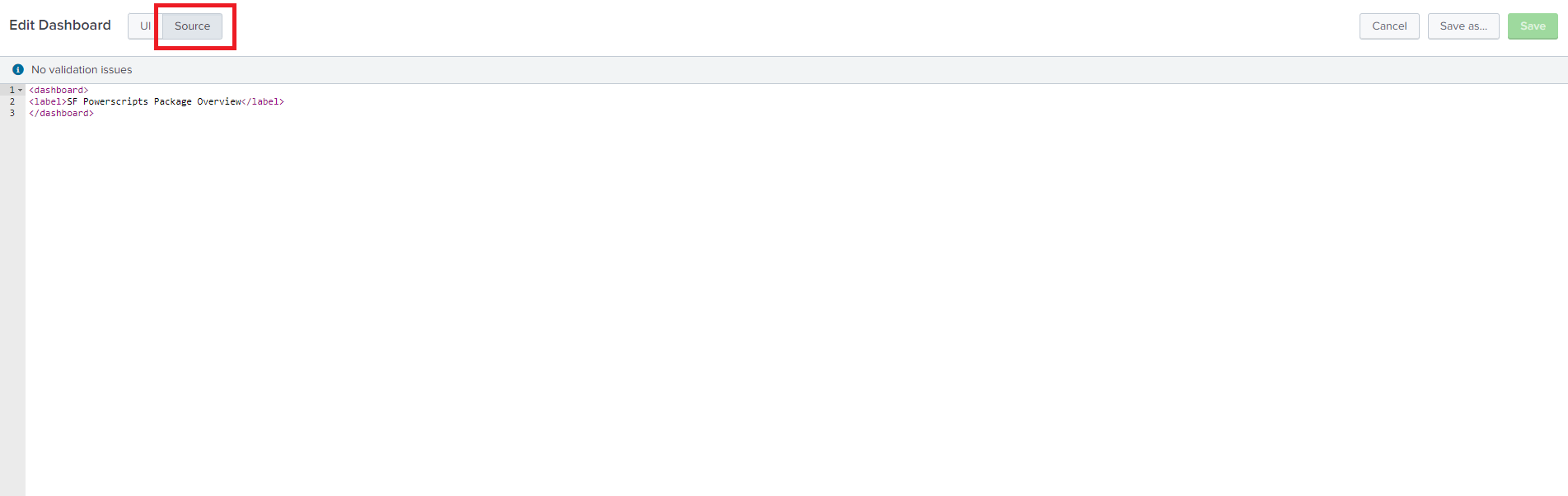

    Click on Source.\
Splunk Dashboard Source Button
  1. 4.
    Choose a splunk xml template from github dxscale/dxscale-template
  2. 5.

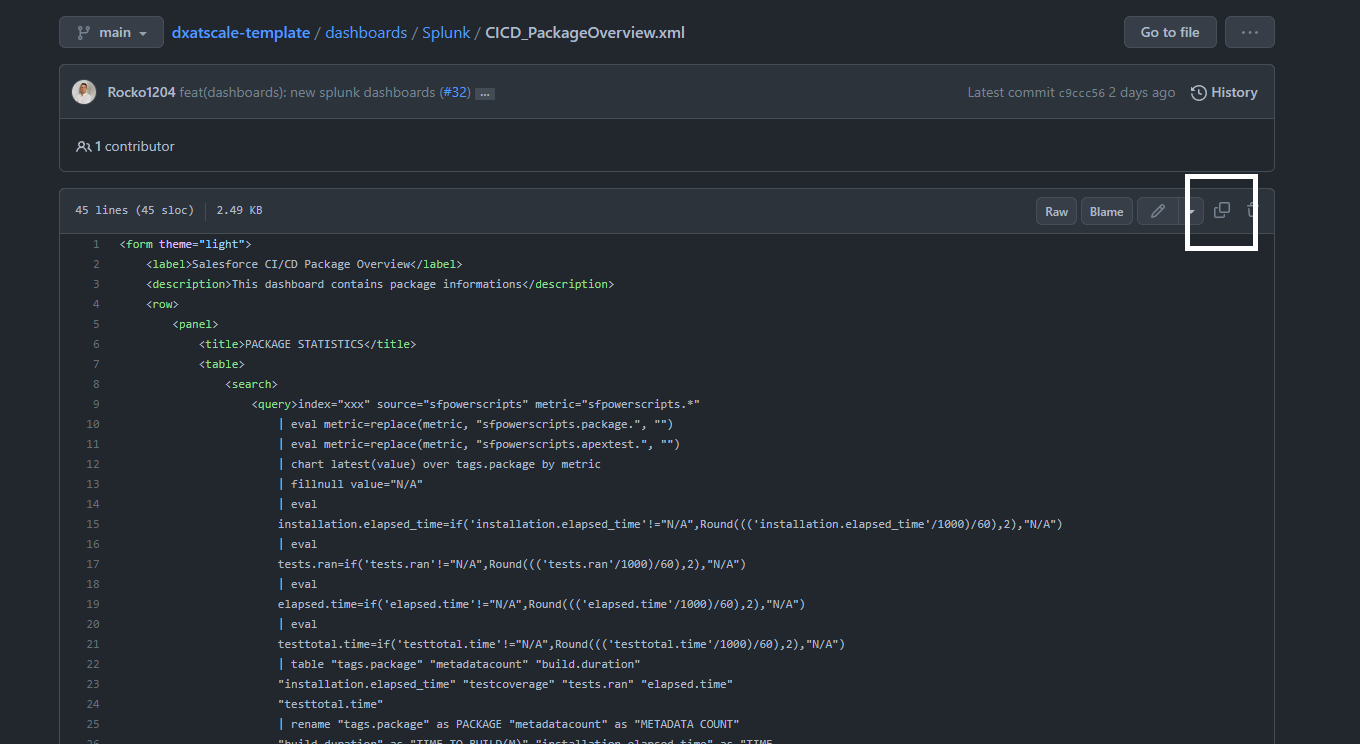

    In this example the CICD_PackageOverview. Copy the contents.\
CICD_PackageOverview.xml
  1. 6.

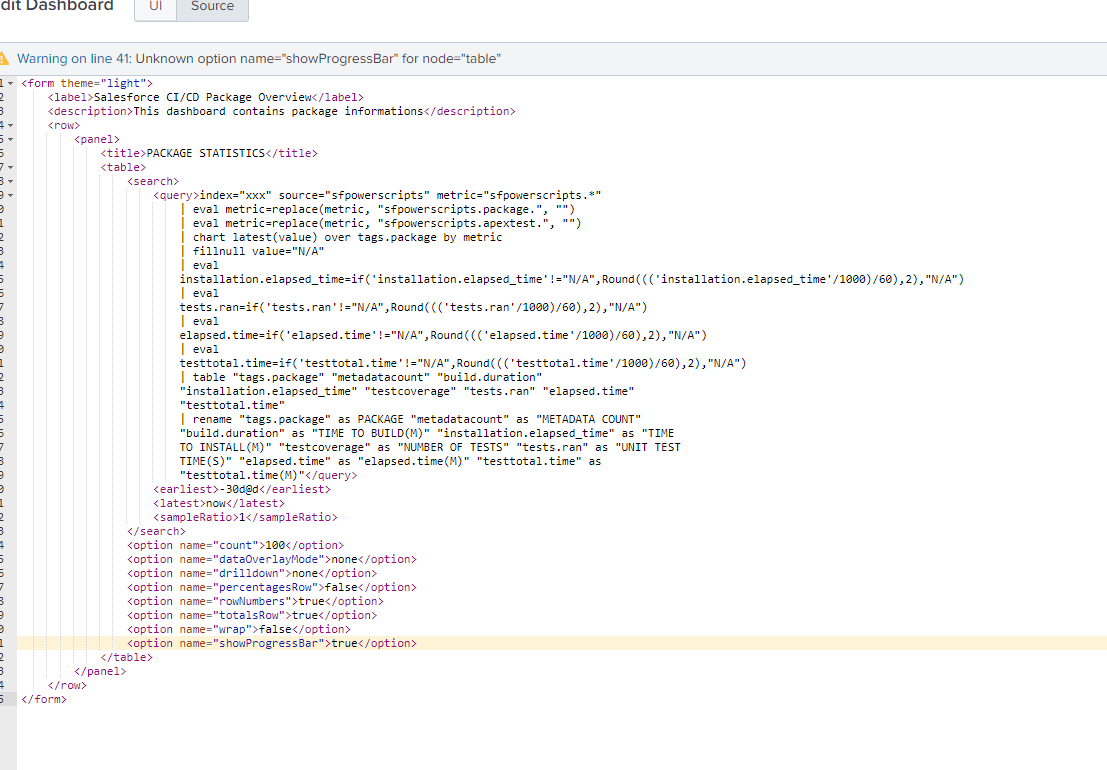

    Paste the xml content in the Splunk Source Editor.\
Splunk Source Editor
  1. 7.

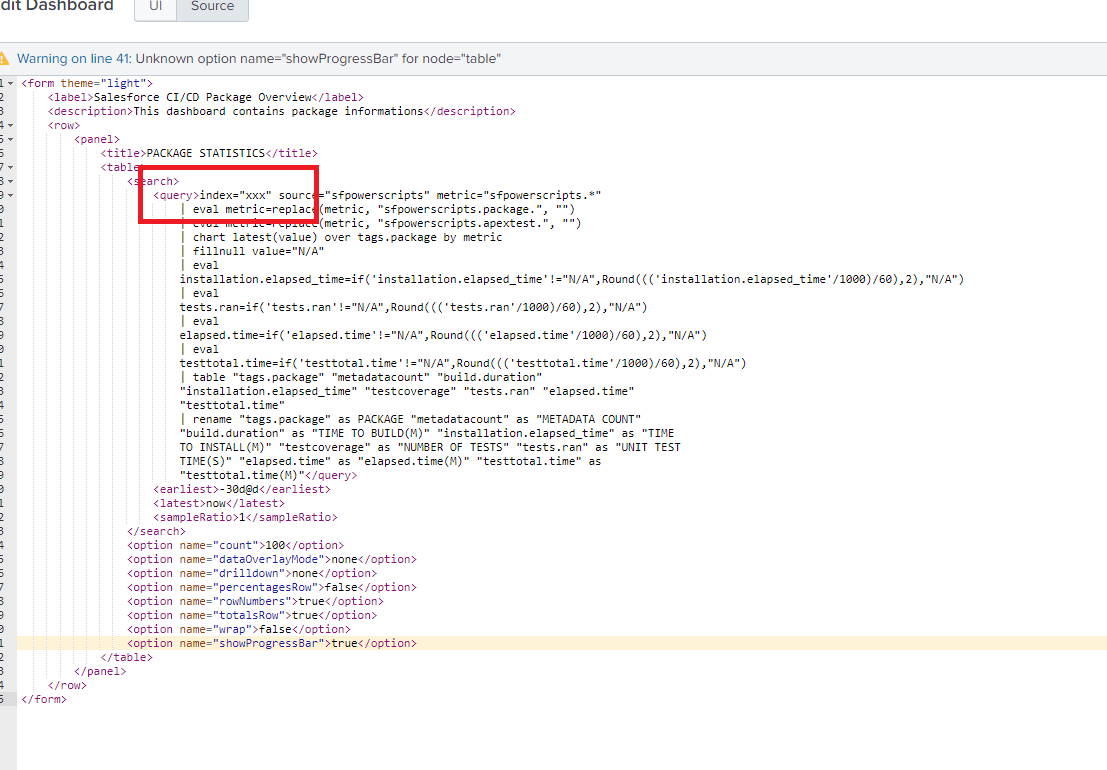

    Update the source content file value of the index for all instances of in the file.\
Change Index Values
  1. 8.

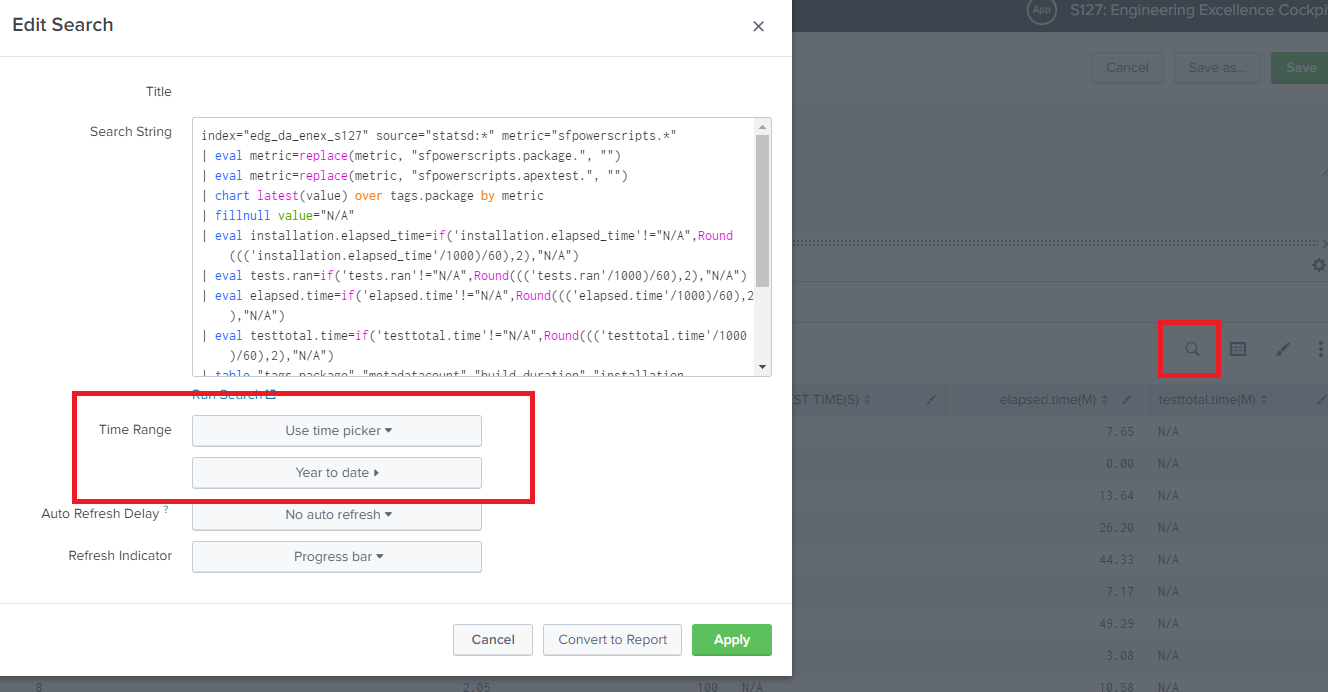

    Update the time range to see all incoming metrics.\
    Change Index Values
  2. 9.
    Click Save. 👏
